HOT ROD / STREET ROD
COLLECTION

Smoothie Wheel

Chrome Rim/Raw Center
(Series 53)

Smoothie - Chrome Rim/Raw Center (Series 53)

14" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
53 53-4610 14X6 5X4.5, 5X4.75 3 3/4 $112.00
53 53-4710 14X7 5X4.5, 5X4.75 4 $112.00

15" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
53 53-5510 15X5 5X4.5, 5X4.75 3 1/4 $112.00
53 53-5610 15X6 5X4.5, 5X4.75 3 3/4 $112.00
53 53-5615 15X6 5X5, 5X5.5 3 3/4 $112.00
53 53-5660 15X6 6X5.5 4 $112.00
53 53-5710 15X7 5X4.5, 5X4.75 4 $112.00
53 53-5810 15X7 5X5, 5X5.5 4 $112.00
53 53-5815 15X7 6X5.5 4 $112.00
53 53-5810 15X8 5X4.5, 5X4.75 4 $114.00
53 53-5815 15X8 5X5, 5X5.5 4 $114.00
53 53-5860 15X8 6X5.5 4 $114.00
53 53-5010 15X10 5X4.5, 5X4.75 4 1/4 $135.00
53 53-5015 15X10 5X5, 5X5.5 4 1/4 $135.00
53 53-5060 15X10 6X5.5 4 1/4 $135.00

16" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
53 53-7610 16X6 5X4.5, 5X4.75 4 1/4 $156.00
53 53-7615 16X6 5X5, 5X5.5 4 1/4 $156.00
53 53-7660 16X6 6X5.5 4 1/4 $156.00
53 53-7710 16X7 5X5, 5X5.5 4 1/4 $160.00
53 53-7715 16X7 5X5, 5X5.5 4 1/4 $160.00
53 53-7760 16X7 6X5.5 4 1/4 $160.00
53 53-7810 16X8 5X4.5, 5X4.75 5 1/4 $164.00
53 53-7815 16X8 5X5, 5X5.5 5 1/4 $164.00
53 53-7860 16X8 6X5.5 5 1/4 $164.00

17" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
53 53-8810 17X8 5X4.5, 5X4.75 4 1/2 $405.00
53 53-8910 17X9 5X4.5, 5X4.75 5 1/4 $427.00

18" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
53 53-9710 18X7 5X4.5, 5X4.75 4 1/4 $489.00
53 53-9810 18X8 5X4.5, 5X4.75 4 1/2 $489.00

Additional Custom Backspaces

STANDARD REVERSE
SIZE NEGATIVE POSITIVE NEGATIVE POSITIVE
14X6 3 1/4 4 1/4 2 1/8 3 1/4
14X7 4 5 1/4 2 1/8 3 1/4
15X5 2 3/4 3 3/8 1 3/4 2 3/8
15X6 3 1/4 4 1/8 1 3/4 3 1/8
15X7 3 5/8 5 1/4 2 3 3/8
15X8 3 5/8 6 2 4 1/2
15X10 4 1/8 8 2 1/4 6 1/4
15X12 4 1/8 7 3/4 2 1/4 8 1/8
15X14 4 1/8 12 2 1/4 10 1/4
16X6 4 1/4 4 1/2 2 1/2 3 1/4
16X7 4 1/4 5 1/2 2 1/2 4
16X8 5 1/4 6 1/2 2 1/2 4
16X10 4 3/4 8 3 1/8 6 1/2
16X12 5 1/4 9 3/4 3 1/8 8 3/8

NOTE: There is an additional $20 fee for Custom Backspaces.


Additional Information

  • Two piece, all-steel construction.
  • Offered in multi fit and direct fit. See the above Tables or Contact Us for details
  • Offered as Paint Ready and Chrome/Paint Ready so that customer can custom paint.

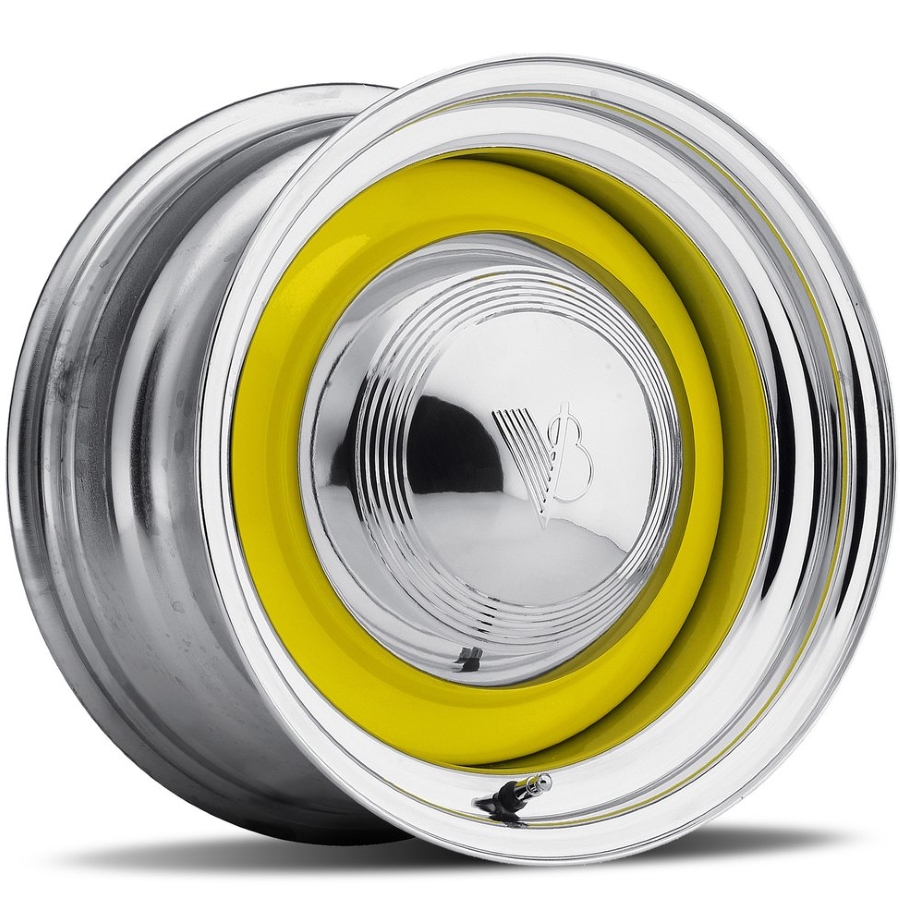

  • Wheel is shown in Yellow.
  • Powder coating extra. Contact Us for details.
  • Babymoon cap and trim ring are not included, order separately. See the Caps and Trim Rings page for accessories.
  • Requires conical seat lug nut (Acorn), not included.
  • Custom backspace available. Contact Us for details.
  • Inside knob for 14"-16" caps is 7 1/2". Inside knob for 17"-18" is 7".
  • Additional sizes are available: 15X12, 15X14, 16X10, 16X12. Contact Us for details.
  • Wheels primered $15.00 each.
  • ALL SALES FINAL
