HOT ROD / STREET ROD
COLLECTION

Deuce Wheel

Raw
(Series 455)

Deuce - Raw (Series 455)

15" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
455 455-5510 15X5 5X4.5, 5X4.75 3 $89.00
455 455-5610 15X6 5X4.5, 5X4.75 3 3/4 $89.00
455 455-56155 15X6 5X5, 5X5.5 3 3/4 $89.00
455 455-5710400 15X7 5X4.5, 5X4.75 4 $93.00
455 455-5710450 15X7 5X4.5, 5X4.75 4 1/2 $93.00
455 455-5715400 15X7 5X5, 5X5.5 4 $93.00
455 455-5715450 15X7 5X5, 5X5.5 4 1/2 $93.00
455 455-5815400 15X8 5X4.5, 5X4.75 4 $97.00
455 455-5815450 15X8 5X4.5, 5X4.75 4 1/2 $97.00
455 455-5815400 15X8 5X5, 5X5.5 4 $97.00
455 455-5815450 15X8 5X5, 5X5.5 4 1/2 $97.00
455 455-5010 15X10 5X4.5, 5X4.75 5 $121.00
455 455-5015 15X10 5X5, 5X5.5 5 $121.00
455 455-5210 15X12 5X4.5, 5X4.75 4 1/2 $191.00
455 455-5215 15X12 5X5, 5X5.5 4 1/2 $191.00
455 455-5410 15X14 5X4.5, 5X4.75 4 1/2 $207.00
455 455-5415 15X14 5X5, 5X5.5 4 1/2 $207.00

16" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
455 455-7610 16X6 5X4.5, 5X4.75 3 3/4 $140.00
455 455-7615 16X6 5X5, 5X5.5 3 3/4 $140.00
455 455-7710 16X7 5X4.5, 5X4.75 4 $146.00
455 455-7715 16X7 5X5, 5X5.5 4 $146.00
455 455-7810 16X8 5X4.5, 5X4.75 4 3/4 $176.00
455 455-7815 16X8 5X5, 5X5.5 4 3/4 $176.00
455 455-7010 16X10 5X4.5, 5X4.75 5 $198.00
455 455-7015 16X10 5X5, 5X5.5 5 $198.00

17" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE BACK SPACE PRICE
455 455-8710 17X7 5X4.5, 5X4.75 4 5/8 $222.00
455 455-8715 17X7 5X5, 5X5.5 4 5/8 $222.00
455 455-8810 17X8 5X4.5, 5X4.75 4 1/2 $233.00
455 455-8815 17X8 5X5, 5X5.5 4 1/2 $233.00
455 455-8910 17X9 5X4.5, 5X4.75 5 1/2 $245.00
455 455-8915 17X9 5X5, 5X5.5 5 1/2 $245.00

Additional Custom Backspaces

STANDARD REVERSE
SIZE NEGATIVE POSITIVE NEGATIVE POSITIVE
15X5 3 3 1/2 2 2 1/2
15X6 3 1/2 4 1/2 2 1/8 3 1/4
15X7 4 5 1/4 2 1/4 3 1/2
15X8 4 6 1/4 2 1/4 4 1/2
15X10 4 1/4 8 2 1/2 6
15X12 4 1/4 10 2 1/2 8
15X14 4 1/4 11 1/2 2 1/2 10
16X6 3 1/2 4 1/2 2 1/2 3 1/4
16X7 4 5 1/4 2 1/4 3 1/2
16X8 4 3/4 6 2 1/4 3 1/2
16X10 4 1/4 7 1/2 2 1/2 6
17X7 3 3/4 5 3/4 2 3/4 4 3/4
17X8 4 1/2 6 3/4 2 3/4 5
17X9 5 1/2 7 3/4 2 3/4 5 1/4

NOTE: There is an additional $20 fee for Custom Backspaces.


Additional Information

  • Two piece, all-steel construction.
  • Offered in multi fit and direct fit. See the above Tables or Contact Us for details
  • Offered in Paint Ready and Chrome/Paint Ready so that customer can custom paint.

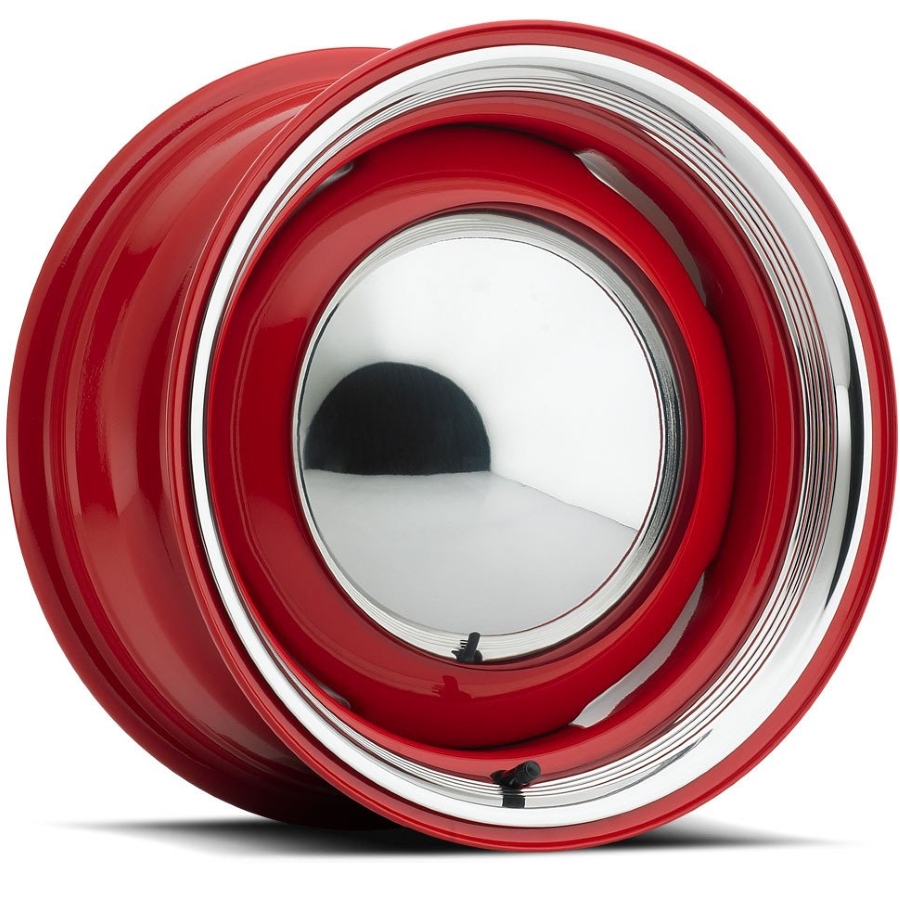

  • Wheel is shown in Red.
  • Powder coating extra. Contact Us for details.
  • Center cap and trim ring are not included, order separately. See the Caps and Trim Rings page for accessories.
  • Requires conical seat lug nut (Acorn), not included.
  • Custom backspace available. Contact Us for details.
  • Inside knob for cap is 8 1/8".
  • Wheels primered $15.00 each.
  • ALL SALES FINAL
