LIGHT TRUCK & PASSENGER
COLLECTION

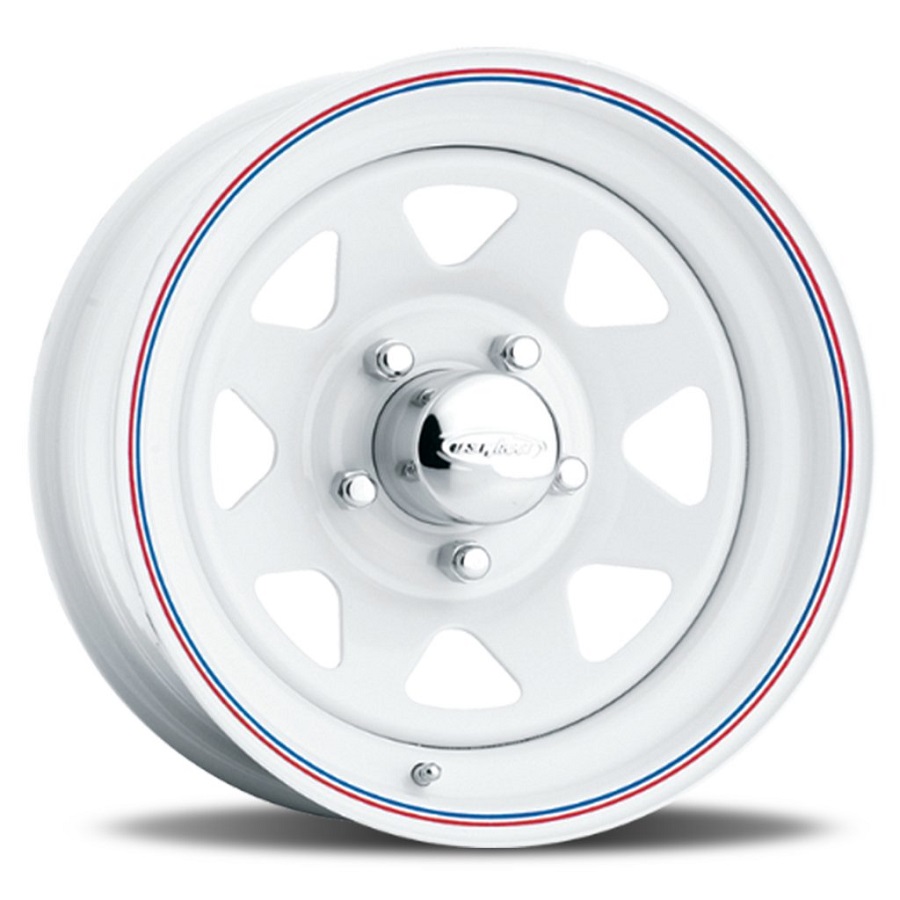

8-Spoke Wheel

White Painted with Red and Blue Stripe
(Series 70)

8-Spoke - White (Series 70)

14" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
70 70-4612 14X6 5X4.5 $66.00
70 70-4634 14X6 5X4.75 $66.00
70 70-4660 14X6 6X5.5 $66.00
70 70-4712 14X7 5X4.5 $72.00
70 70-4760 14X7 6X5.5 $72.00

15" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
70 70-5712 15X7 5X4.5 $77.00
70 70-5712P 15X7 5X4.5 $77.00
70 70-5734 15X7 5X4.75 $77.00
70 70-5750 15X7 5X5 $77.00
70 70-5755 15X7 5X5.5 $77.00
70 70-5760 15X7 6X5.5 $77.00
70 70-5760P 15X7 6X5.5 $77.00
70 70-5780 15X7 8X6.5 $77.00
70 70-5812 15X8 5X4.5 $81.00
70 70-5834 15X8 5X4.75 $81.00
70 70-5850 15X8 5X5 $81.00
70 70-5855 15X8 5X5.5 $81.00
70 70-5860 15X8 6X5.5 $81.00
70 70-5860P 15X8 6X5.5 $81.00
70 70-5880 15X8 8X6.5 $81.00
70 70-5012 15X10 5X4.5 $105.00
70 70-5050 15X10 5X5 $105.00
70 70-5055 15X10 5X5.5 $105.00
70 70-5060 15X10 6X5.5 $105.00
70 70-5080 15X10 8X6.5 $105.00

16" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
70 70-7755 16X7 5X5.5 $107.00
70 70-7760P 16X7 6X5.5 $107.00
70 70-7780 16X7 8X6.5 $107.00
70 70-7855 16X8 5X5.5 $121.00
70 70-7860 16X8 6X5.5 $121.00
70 70-7880 16X8 8X6.5 $121.00
70 70-6680 16.5X6.75 8X5.5 $108.00
70 70-6860 16.5X8.25 6X5.5 $114.00
70 70-6955 16.5X9.75 5X5.5 $127.00
70 70-6960 16.5X9.75 6X5.5 $127.00
70 70-6980 16.5X9.75 8X6.5 $127.00

17" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
70 70-8860 17X8 6X5.5 $127.00

Additional Custom Backspaces

STANDARD REVERSE
SIZE NEGATIVE POSITIVE NEGATIVE POSITIVE
13X5.5 2 5/8 3 3/4 1 3/4 2 5/8
14X6 2 3/4 3 3/4 1 1/2 2 1/2
14X7 3 1/4 4 3/4 1 1/2 3
15X7 3 1/2 4 1/2 1 3/4 3
15X8 3 1/2 5 1/2 1 3/4 3 3/4
15X10 3 3/4 7 2 1/4 5 3/4
15X12 4 9 1/4 2 7 1/2
15X14 4 11 2 9 1/4
16X7 3 1/4 4 1/2 1 1/2 3
16X8 4 5 1/2 1 1/2 3
16X10 3 1/2 6 3/4 2 5 1/2
16X12 4 8 3/4 2 7
16.5X6.75 3 1/2 4 2 2 1/4
16.5X8.25 3 1/2 5 3/4 1 3/4 4
16.5X9.75 3 3/4 7 2 5 1/2

NOTE: There is an additional $20 fee for Custom Backspaces.


Additional Information

  • Two piece, all-steel construction.
  • Wheel is shown with powder coat finish.
  • Powder coating extra. Contact Us for details.
  • Offered in direct fit only. See the above Tables or Contact Us for details
  • Center cap is not included, order separately. See the Caps and Trim Rings page for accessories.
  • Requires conical seat lug nut (Acorn), not included.
  • Additional sizes are available: 15X12, 15X14, 16X10, 16X12. Contact Us for details.
  • Wheels primered $15.00 each.
  • ALL SALES FINAL
