LIGHT TRUCK & PASSENGER
COLLECTION
| SERIES |
PART NO. |
SIZE |
BOLT CIRCLE |
PRICE |
| 84 |
84-5712L |
15X7 |
5X4.5 |
$85.00 |
| 84 |
84-5712PL |
15X7 |
5X4.5 |
$85.00 |
| 84 |
84-5734L |
15X7 |
5X4.75 |
$85.00 |
| 84 |
84-5734PL |
15X7 |
5X4.75 |
$85.00 |
| 84 |
84-5750L |
15X7 |
5X5 |
$85.00 |
| 84 |
84-5755L |
15X7 |
5X5.5 |
$85.00 |
| 84 |
84-5760L |
15X7 |
6X5.5 |
$85.00 |
| 84 |
84-5812L |
15X8 |
5X4.5 |
$87.00 |
| 84 |
84-5834L |
15X8 |
5X4.75 |
$87.00 |
| 84 |
84-5850L |
15X8 |
5X5 |
$87.00 |
| 84 |
84-5850PL |
15X8 |
5X5 |
$87.00 |
| 84 |
84-5855L |
15X8 |
5X5.5 |
$87.00 |
| 84 |
84-5860PL |
15X8 |
6X5.5 |
$87.00 |
| 84 |
84-5860L |
15X8 |
6X5.5 |
$87.00 |
| 84 |
84-5012L |
15X10 |
5X4.5 |
$115.00 |
| 84 |
84-5034L |
15X10 |
5X4.75 |
$115.00 |
| 84 |
84-5050L |
15X10 |
5X5 |
$115.00 |
| 84 |
84-5055L |
15X10 |
5X5.5 |
$115.00 |
| 84 |
84-5060L |
15X10 |
6X5.5 |
$115.00 |
| 84 |
84-5080L |
15X10 |
8X6.5 |
$115.00 |
| SERIES |
PART NO. |
SIZE |
BOLT CIRCLE |
PRICE |
| 84 |
84-7712L |
16X7 |
5X4.5 |
$119.00 |
| 84 |
84-7734L |
16X7 |
5X4.75 |
$119.00 |
| 84 |
84-7750L |
16X7 |
5X5 |
$119.00 |
| 84 |
84-7755L |
16X7 |
5X5.5 |
$119.00 |
| 84 |
84-7760L |
16X7 |
6X5.5 |
$119.00 |
| 84 |
84-7780L |
16X7 |
8X6.5 |
$119.00 |
| 84 |
84-7834PL |
16X8 |
5X4.75 |
$128.00 |
| 84 |
84-7850PL |
16X8 |
5X5 |
$128.00 |
| 84 |
84-7855PL |
16X8 |
5X5.5 |
$128.00 |
| 84 |
84-7860PL |
16X8 |
6X5.5 |
$128.00 |
| 84 |
84-7880L |
16X8 |
8X6.5 |
$128.00 |
| 84 |
84-7055 |
16X10 |
5X5.5 |
$153.00 |
| 84 |
84-7060 |
16X10 |
6X5.5 |
$153.00 |
| 84 |
84-7080 |
16X10 |
8X6.5 |
$153.00 |
| SERIES |
PART NO. |
SIZE |
BOLT CIRCLE |
PRICE |
| 84 |
84-8812 |
17X8 |
5X4.5 |
$141.00 |
| 84 |
84-8850 |
17X8 |
5X5 |
$141.00 |
| 84 |
84-8855 |
17X8 |
5X5.5 |
$141.00 |
| 84 |
84-8860 |
17X8 |
6X5.5 |
$141.00 |
| 84 |
84-8955 |
17X9 |
5X5.5 |
$147.00 |
| 84 |
84-8960 |
17X9 |
6X5.5 |
$147.00 |
| 84 |
84-8980 |
17X9 |
8X6.5 |
$147.00 |
|
STANDARD |
REVERSE |
| SIZE |
NEGATIVE |
POSITIVE |
NEGATIVE |
POSITIVE |
| 15X6 |
2 1/4 |
3 1/4 |
1 1/8 |
2 1/4 |
| 15X7 |
2 3/4 |
4 1/4 |
1 1/8 |
2 3/4 |
| 15X8 |
2 3/4 |
5 1/4 |
1 1/8 |
3 3/4 |
| 15X10 |
3 1/4 |
7 |
1 1/4 |
5 1/4 |
| 15X12 |
3 1/4 |
9 |
1 1/4 |
7 3/8 |
| 15X14 |
3 1/4 |
11 |
1 1/4 |
9 1/4 |
| 16X7 |
3 |
4 1/4 |
1 |
2 1/8 |
| 16X8 |
4 |
5 1/4 |
1 |
2 |
| 16X10 |
3 |
6 3/4 |
1 |
5 1/4 |
| 16.5X8.25 |
3 1/2 |
5 1/2 |
1 3/4 |
4 |
| 16.5X9.75 |
3 1/2 |
7 |
1 3/4 |
5 |
| 16.5X12 |
4 3/4 |
9 1/4 |
1 1/2 |
6 |
| 17X7 |
1 7/8 |
4 1/4 |
1 |
3 |
| 17X8 |
3 |
5 1/8 |
1 |
3 1/2 |
| 17X9 |
3 1/2 |
5 3/4 |
1 |
3 1/2 |
NOTE: There is an additional $20 fee for Custom Backspaces.
- Two piece, all-steel construction.

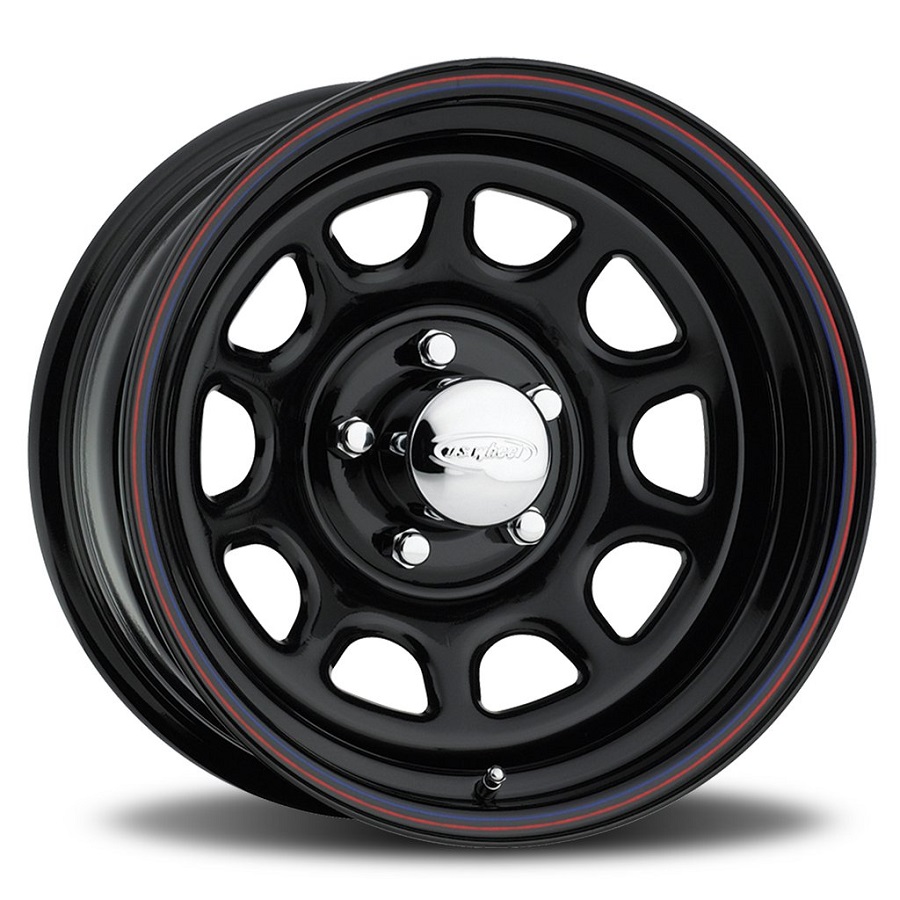

- Wheel is shown with powder coat finish.
- Powder coating extra. Contact Us for details.
- Offered in direct fit only. See the above Tables or Contact Us for details
- Center cap is not included, order separately. See the Caps and Trim Rings page for accessories.
- Requires conical seat lug nut (Acorn), not included.
- Additional sizes are available: 15X12, 15X14, 16X10, 16X12. Contact Us for details.
- Wheels primered $15.00 each.
- ALL SALES FINAL
