LIGHT TRUCK & PASSENGER
COLLECTION

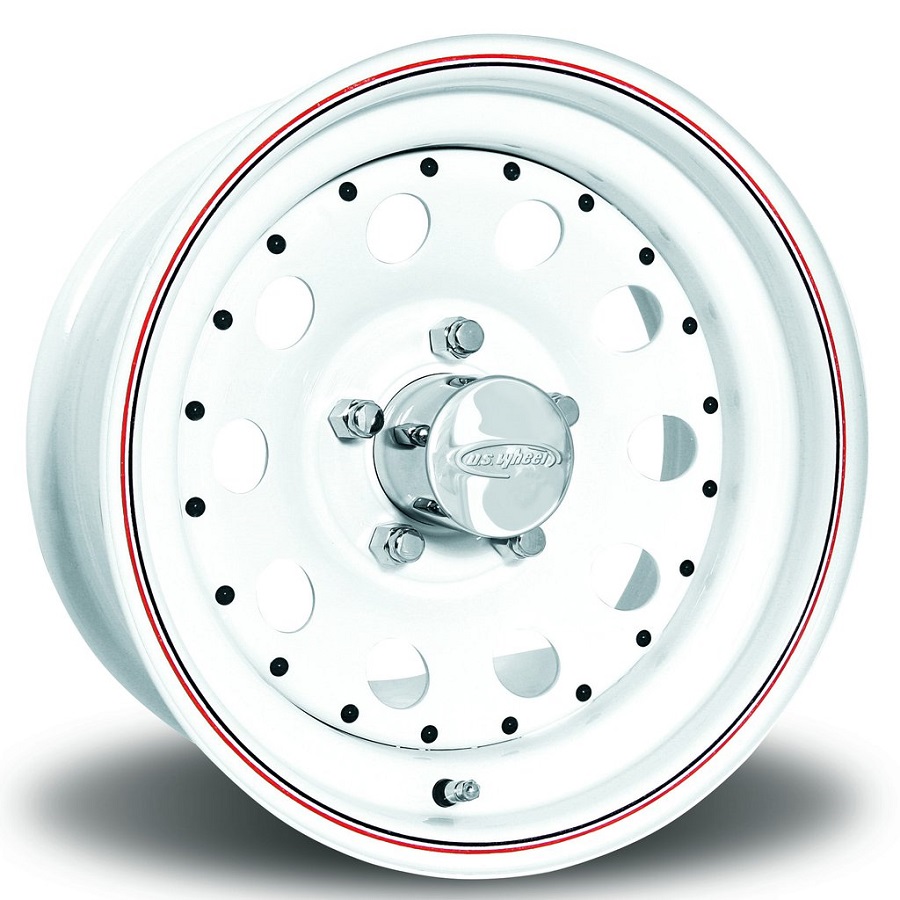

Modular Wheel

White Painted with Red and Blue Stripe
(Series 90)

Modular White - White (Series 90)

14" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
90 90-4625 14X6 4X4.25 $66.00
90 90-4634 14X6 5X4.75 $66.00
90 90-4644 14X6 4X4.5 $66.00
90 90-4612 14X6 5X4.5 $66.00
90 90-4725 14X7 4X4.25 $72.00
90 90-4744 14X7 4X4.5 $72.00
90 90-4712 14X7 5X4.5 $72.00
90 90-4734 14X7 5X4.75 $72.00
90 90-4760 14X7 6X5.5 $72.00

15" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
90 90-5725 15X7 4X4.25 $77.00
90 90-5712 15X7 5X4.5 $77.00
90 90-5712P 15X7 5X4.5 $77.00
90 90-5734 15X7 5X4.75 $77.00
90 90-5734P 15X7 5X4.75 $77.00
90 90-5750 15X7 5X5 $77.00
90 90-5755 15X7 5X5.5 $77.00
90 90-5760 15X7 6X5.5 $77.00
90 90-5760P 15X7 6X5.5 $77.00
90 90-5812 15X8 5X4.5 $81.00
90 90-5834 15X8 5X4.75 $81.00
90 90-5850 15X8 5X5 $81.00
90 90-5855 15X8 5X5.5 $81.00
90 90-5860 15X8 6X5.5 $81.00
90 90-5012 15X10 5X4.5 $105.00
90 90-5034 15X10 5X4.75 $105.00
90 90-5050 15X10 5X5 $105.00
90 90-5055 15X10 5X5.5 $105.00
90 90-5060 15X10 6X5.5 $105.00

16" Wheel Prices

SERIES PART NO. SIZE BOLT CIRCLE PRICE
90 90-7755 16X7 5X5.5 $107.00
90 90-7760 16X7 6X5.5 $107.00
90 90-7780 16X7 8X6.5 $107.00
90 90-7860 16X8 6X5.5 $121.00
90 90-7880 16X8 8X6.5 $121.00
90 90-6680 16.5X6.75 8X6.5 $108.00
90 90-6880 16.5X8.25 8X6.5 $114.00
90 90-6980 16.5X9.75 8X6.5 $127.00

Additional Custom Backspaces

STANDARD REVERSE
SIZE NEGATIVE POSITIVE NEGATIVE POSITIVE
13X5.5 2 5/8 3 3/4 1 3/4 2 5/8
14X6 2 3/4 3 3/4 1 1/2 2 1/2
14X7 3 1/4 4 3/4 1 1/2 3
15X7 3 1/2 4 1/2 1 3/4 3
15X8 3 1/2 5 1/2 1 3/4 3 3/4
15X10 3 3/4 7 2 1/4 5 3/4
15X12 4 9 1/4 2 7 1/2
15X14 4 11 2 9 1/4
16X7 3 1/4 4 1/2 1 1/2 3
16X8 4 5 1/2 1 1/2 3
16X10 3 1/2 6 3/4 2 5 1/2
16X12 4 8 3/4 2 7
16.5X6.75 3 1/2 4 2 2 1/4
16.5X8.25 3 1/2 5 3/4 1 3/4 4
16.5X9.75 3 3/4 7 2 5 1/2

NOTE: There is an additional $20 fee for Custom Backspaces.


Additional Information

  • Two piece, all-steel construction.
  • Wheel is shown with Painted wheel and the center is powder coated.
  • Powder coating and Paint extra. Contact Us for details.
  • Offered in direct fit only. See the above Tables or Contact Us for details
  • Center cap is not included, order separately. See the Caps and Trim Rings page for accessories.
  • Requires conical seat lug nut (Acorn), not included.
  • Additional sizes are available: 15X12, 15X14, 16X10, 16X12. Contact Us for details.
  • Wheels primered $15.00 each.
  • ALL SALES FINAL
